Light source:
10 x 60W (RGBW 4 in 1)
Auxiliary light:
100 x 0.8W (RGB)
100 x 3W (CW)
100 x 3W (WW)
Average Life expectancy≥ 50,000h
CRI: Ra＞90 (CW/WW)
Light source:
10 x 60W (RGBW 4 in 1)
Auxiliary light:
100 x 0.8W (RGB)
100 x 3W (CW)
100 x 3W (WW)
Average Life expectancy≥ 50,000h
CRI: Ra＞90 (CW/WW)

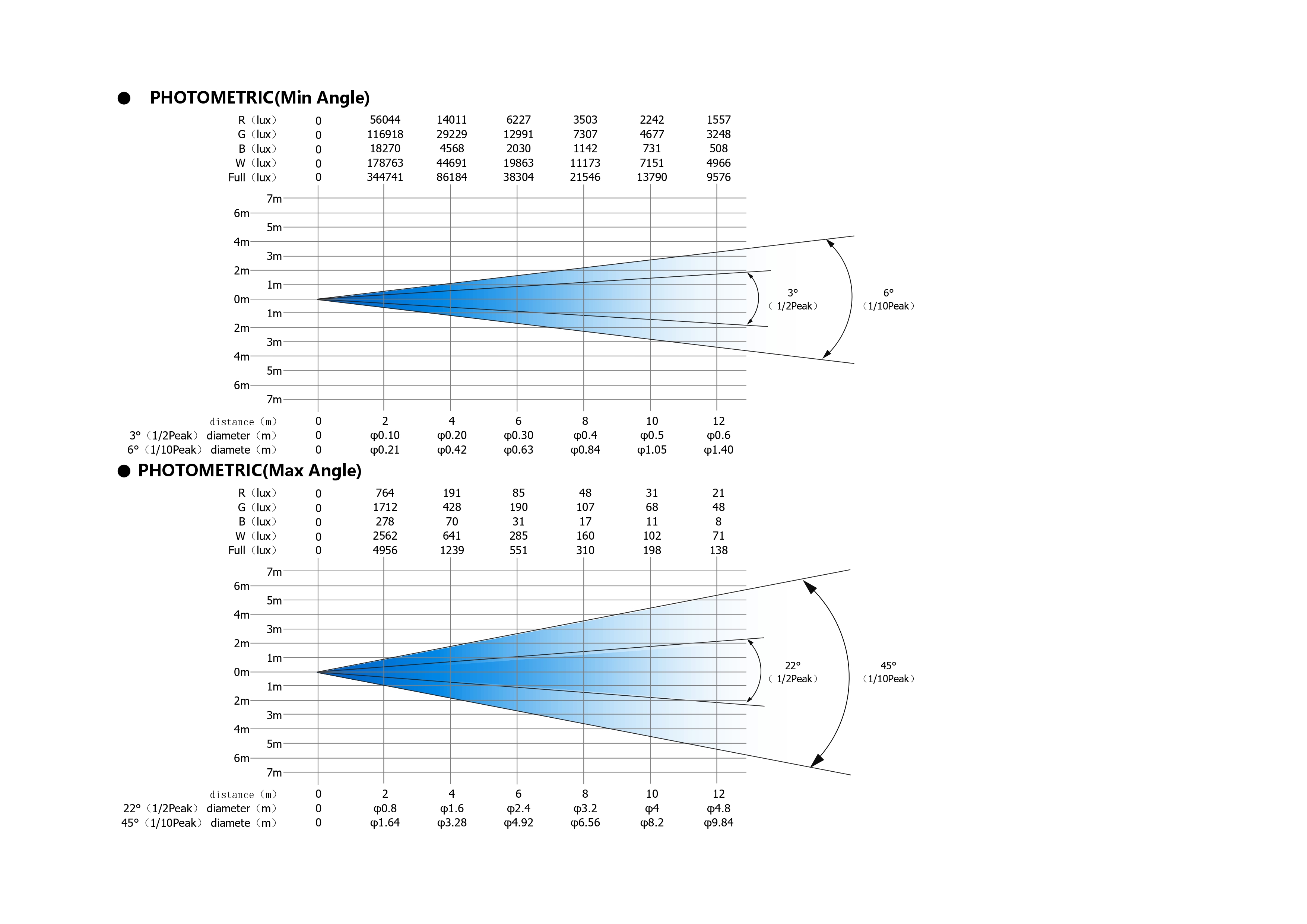

Beam Angle: 3°- 45°
Beam Angle: 3°- 45°
Tilt 200°, 16 bit control
Applied by optocoupler encoder positioning system for vertical location
Tilt 200°, 16 bit control
Applied by optocoupler encoder positioning system for vertical location
Channel control: 25/40/91/98/148/8+140
Protocol: DMX512/RDM, Art net, optional: sACN, wireless DMX512
Menu display: 1.3-inch black and white OLED display screen, Chinese/English language can be freely switched, 180 °inverted displaying available, touch button operation mode, quick return button
Channel control: 25/40/91/98/148/8+140
Protocol: DMX512/RDM, Art net, optional: sACN, wireless DMX512
Menu display: 1.3-inch black and white OLED display screen, Chinese/English language can be freely switched, 180 °inverted displaying available, touch button operation mode, quick return button
Input voltage: 100-240V ~
Input frequency: 50/60Hz
Input maximum current: 6.8A@100V
Input power: 680W@100V
Power factor ≥0.98
Power connection: PowerCON TRUE1 input/output
Signal in/out: 3 pin DMX in/out, RJ45 interface
Input voltage: 100-240V ~
Input frequency: 50/60Hz
Input maximum current: 6.8A@100V
Input power: 680W@100V
Power factor ≥0.98
Power connection: PowerCON TRUE1 input/output
Signal in/out: 3 pin DMX in/out, RJ45 interface

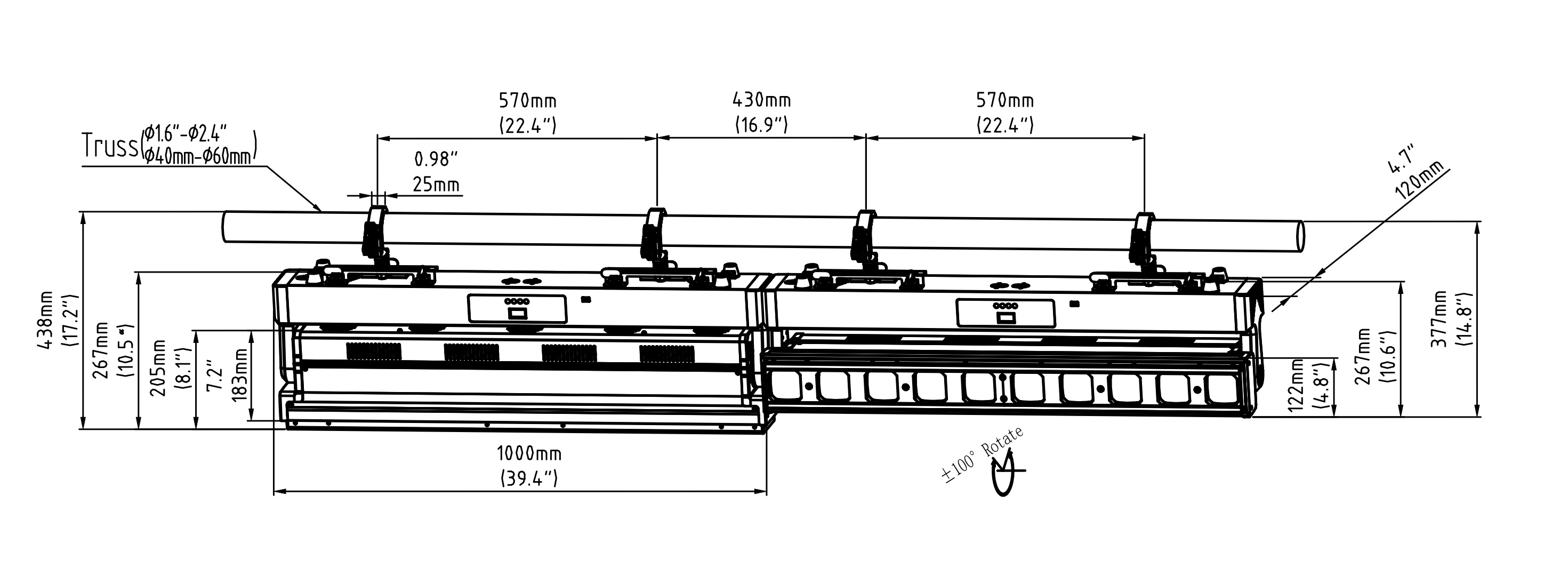

Fixture Dimension: 1000x120x302mm
Package Dimension:
1235*640*530mm(Flight case)
1105*245*430mm(Carton box)
Net Weight:18.3KG(fixture)
Gross Weight: 140 kg
Fixture Dimension: 1000x120x302mm
Package Dimension:
1235*640*530mm(Flight case)
1105*245*430mm(Carton box)
Net Weight:18.3KG(fixture)
Gross Weight: 140 kg
4 sets / flight case
4 sets / flight case
IP 20
IP 20
