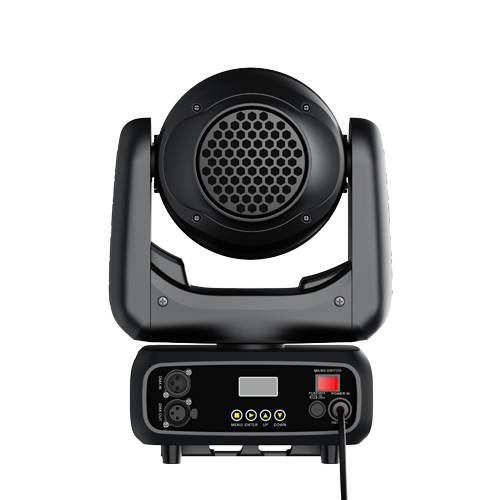

OVERVIEW

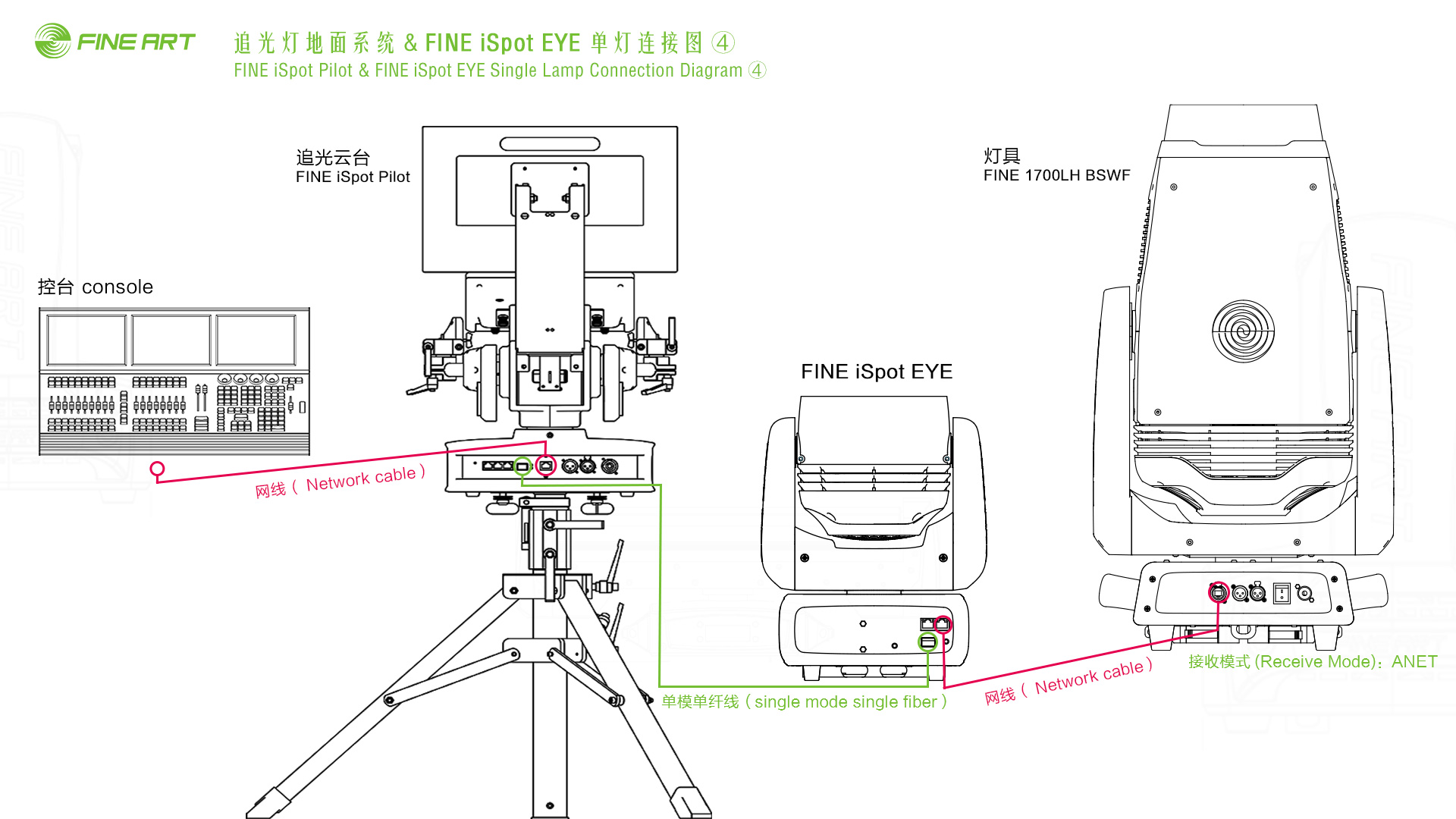

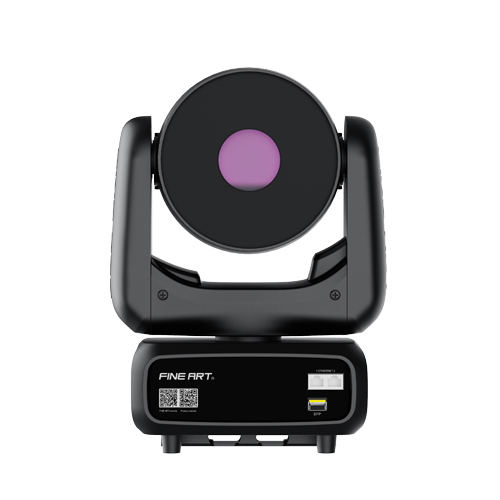

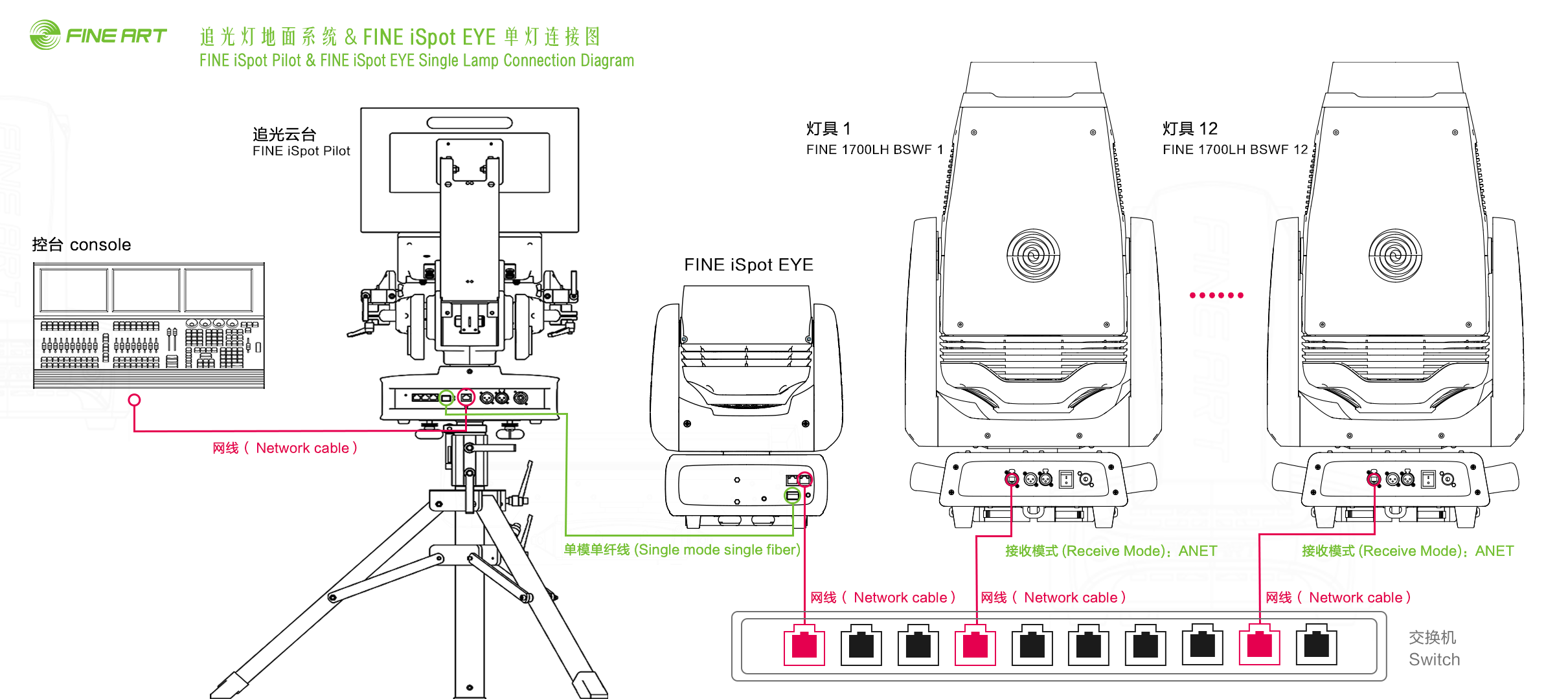

FINE iSPOT EYE is a revolutionary moving head light fixture. It has a built-in high-definition camera with extremely high sensitivity and extremely low video picture delay performance, and can work in a lighting environment of ≤1lux. The video signals of the lamps and cameras are transmitted to the FINE iSPOT PILOT ground tracking system through high-speed Ethernet or optical fiber. The light-tracing operator remotely controls the horizontal rotation, vertical rotation, zoom and auto-focus operations of the FINE iSPOT EYE through the FINE iSPOT PILOT, tracking the actors on the stage in real time from a "first-person perspective".
TECHNICAL SPECIFICATION
VIDEO CAMERA
Resolution: 1920 x 1080, 16:9 Full HD (1080p) resolution support
Zoom:
32x optical zoom
32x digital zoom
Vision: day and night conversion (ICR), wide dynamic range (120dB), defogging
Minimum illumination: 0.05lux
Resolution: 1920 x 1080, 16:9 Full HD (1080p) resolution support
Zoom:
32x optical zoom
32x digital zoom
Vision: day and night conversion (ICR), wide dynamic range (120dB), defogging
Minimum illumination: 0.05lux
MOVEMENT PARAMETER
Horizontal 540°, accuracy 2.11°/step, fine adjustment accuracy 0.008°
Vertical 250°, accuracy 1.05°/step, fine adjustment accuracy 0.004°
Horizontal and vertical positioning using magnetic rotary encoders
Horizontal 540°, accuracy 2.11°/step, fine adjustment accuracy 0.008°
Vertical 250°, accuracy 1.05°/step, fine adjustment accuracy 0.004°
Horizontal and vertical positioning using magnetic rotary encoders
CONTROL AND PROGRAMMING
Control channel: 8-channel control mode
Control protocol: standard DMX512 protocol, Art-net Ethernet lighting control protocol and wireless DMX512 control (optional)
Menu display: 1.3-inch OLED screen, resolution 128 × 64
Chinese and English languages can be switched at will, fonts can be reversed 180° for display
button operation mode
Control channel: 8-channel control mode
Control protocol: standard DMX512 protocol, Art-net Ethernet lighting control protocol and wireless DMX512 control (optional)
Menu display: 1.3-inch OLED screen, resolution 128 × 64
Chinese and English languages can be switched at will, fonts can be reversed 180° for display
button operation mode
ELECTRONIC CONTROL TECHNOLOGY
Fan intelligent control
Temperature electronic sensing detection
DMX channel level monitoring
Screen lighting information query
RDM data bidirectional transmission
Signal feedback, absolute position memory, DMX offline power-off position recovery
Fan intelligent control
Temperature electronic sensing detection
DMX channel level monitoring
Screen lighting information query
RDM data bidirectional transmission
Signal feedback, absolute position memory, DMX offline power-off position recovery
ELECTRICAL AND INTERFACE
Input voltage: 100-240V~, 50/60Hz
Rated power: 25W
Fiber port: single-mode LC fiber x 1
Ethernet port: RJ45 x 3 (Video/PSN)
ArtNet port: RJ45 x 1 working environment
Input voltage: 100-240V~, 50/60Hz
Rated power: 25W
Fiber port: single-mode LC fiber x 1
Ethernet port: RJ45 x 3 (Video/PSN)
ArtNet port: RJ45 x 1 working environment
DOWNLOADS
Filename
Size
Uploaded
Downloading
Drawings
FINE ISPOT EYE Dimension Drawing
