FINE 150W FT IP
OVERVIEW
FINE 75W FT IP - the world's leading all-weather professional footlight with white light, size 0.5 meters. 2800K~6500K variable color temperature white light, and both Ra and R9 can reach above 90. Featuring an asymmetrical reflector design, arranged in double rows, each row can be independently controlled to provide long- or short-range projection capabilities for on-stage or off-stage lighting effects. IP66 protection level, black lamp shell, does not affect the stage layout, simple and stylish appearance. All signal and power connections are located at the bottom of the fixture to keep the audience's line of sight and the stage layout clean. They can also be used as performer position markers on stage or as safety warning lines at the edge of the stage. FINE 75W FT footlight is the first choice for white light and color lighting before and after the stage. Whether it is theater, entertainment stage, exhibition, shopping mall or outdoor live performance, it can show its unique charm.
TECHNICAL SPECIFICATION
LIGHT SOURCE
  • Light source: (24CW+24WW) x 3W LED light source

  • Lifespan: 5000h

  • CRI: Ra≥R9, R9≥85

  • Light source: (24CW+24WW) x 3W LED light source

  • Lifespan: 5000h

  • CRI: Ra≥R9, R9≥85

OPTICAL SYSTEM
  • Beam angle: 50*80°

  • Beam angle: 50*80°

COLOR SYSTEM
  • CTO: 2800K-6500K

  • CTO: 2800K-6500K

EFFECTS
  • Strobe: fast strobe, multiple strobe mode selection, pulsation, thunder and lightning, random

  • Strobe: fast strobe, multiple strobe mode selection, pulsation, thunder and lightning, random

CONTROL AND PROGRAMMING
  • Channel control: 11(Stand)/7(Simp)/ 20(Pixels)

  • Protocol: DMX512/RDM protocol

  • Menu display: 1.3 inch black and white OLED display screen, switchable Chinese and English language, 180° rotatable font

  • Channel control: 11(Stand)/7(Simp)/ 20(Pixels)

  • Protocol: DMX512/RDM protocol

  • Menu display: 1.3 inch black and white OLED display screen, switchable Chinese and English language, 180° rotatable font

POWER SUPPLY
  • Input voltage: 100-240V~ 50/60Hz

  • Input power: 170W

  • Power factor: PF≥0.95

  • Power socket: PowerCON TRUE1 input/output

  • Signal Input/output: 3 pin DMX input/output

  • Input voltage: 100-240V~ 50/60Hz

  • Input power: 170W

  • Power factor: PF≥0.95

  • Power socket: PowerCON TRUE1 input/output

  • Signal Input/output: 3 pin DMX input/output

DIMENSION AND WEIGHT
  • Fixture Dimension: 1003 x 149 x 130mm

  • Package Dimension: 1216 x 574 x 567mm (flight case)

  • Net weight: 11.5 kg (fixture)

  • Gross Weight: 115.5 kg (flight case)

  • Fixture Dimension: 1003 x 149 x 130mm

  • Package Dimension: 1216 x 574 x 567mm (flight case)

  • Net weight: 11.5 kg (fixture)

  • Gross Weight: 115.5 kg (flight case)

PACKAGE
  • 5 pcs / flight case

  • 5 pcs / flight case

INSTALL
  • Install horizontally or vertically,  side-hung available

  • 2 pieces suitable for 40~60mm  Truss, integrated light hook Safety wires connection hole

  • Install horizontally or vertically,  side-hung available

  • 2 pieces suitable for 40~60mm  Truss, integrated light hook Safety wires connection hole

IP RATE
  • IP 66

  • IP 66

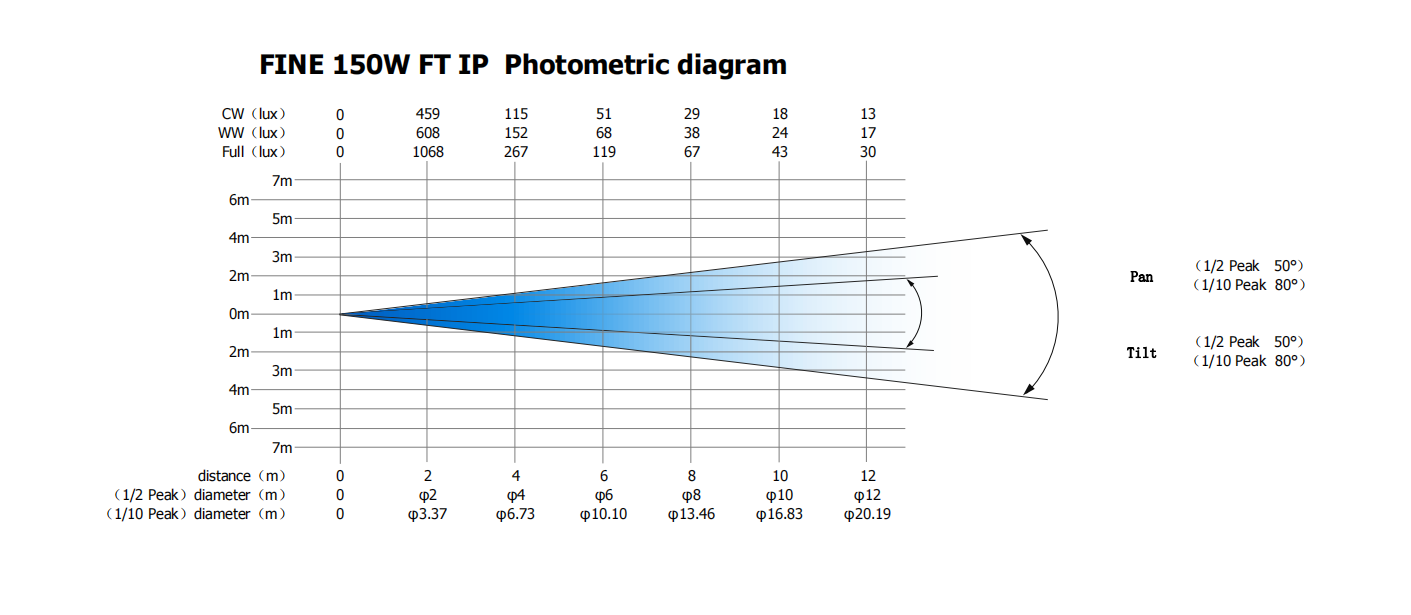

PHOTOMETRICS

FINE 150W IP照度表-20240111_00

GOBOS & COLORS
OPTIONAL ACCESSORIES
