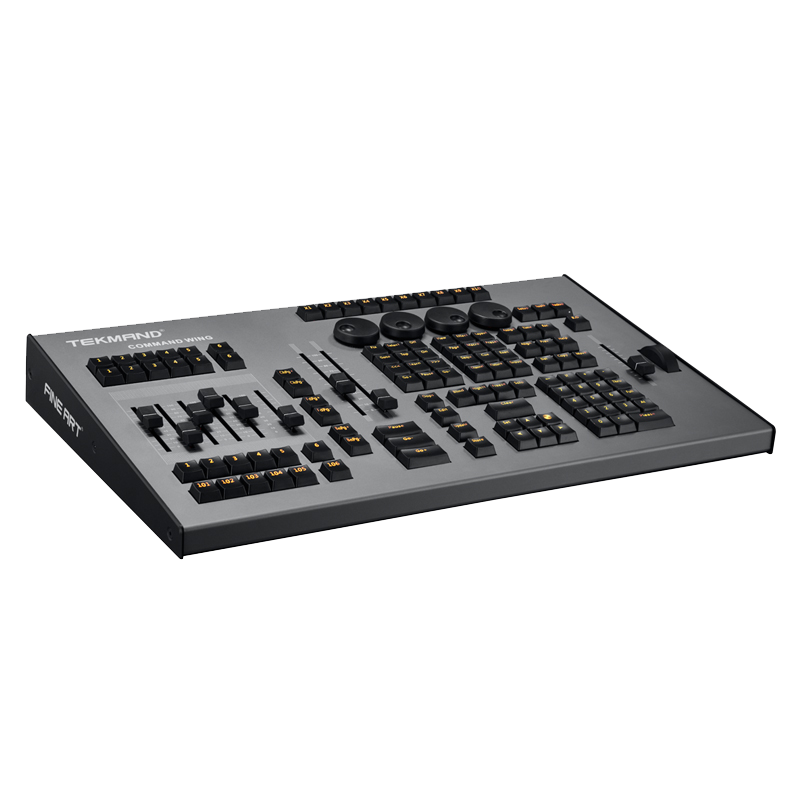

TEKMAND COMMAND WING
OVERVIEW
TEKMAND COMMAND WING, with the outstanding features of small, light, strong and convenient for hand-carry, is one member of TEKMAND console family. With TEKMAND on PC software, it can be connected with PC to control the relevant equipment, making the random operation easy and convenience. It is suitable for all kinds of operation conditions.
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION

  • Available to control 2048 parameters（Available to control max 65536 parameters when connecting to TEKMAND system）

  • 4 DMX inputs/outputs

  • MIDI input/output

  • LTC/ Smpte input

  • 6 executive faders

  • 2 A/B faders

  • 1 dimmer wheel

  • 4 encoders

  • Available to adjust brightness of key backlight

  • Available to connect with TEKMAND on PC system via USB

  • Available to control 2048 parameters（Available to control max 65536 parameters when connecting to TEKMAND system）

  • 4 DMX inputs/outputs

  • MIDI input/output

  • LTC/ Smpte input

  • 6 executive faders

  • 2 A/B faders

  • 1 dimmer wheel

  • 4 encoders

  • Available to adjust brightness of key backlight

  • Available to connect with TEKMAND on PC system via USB

  • Power Supply: 100-240V~, 0.12A, 50/60 Hz

  • Max Power: 6.7W

  • IP Rate: IP 20

  • Working Temperature：-10～40ºC

  • Power Supply: 100-240V~, 0.12A, 50/60 Hz

  • Max Power: 6.7W

  • IP Rate: IP 20

  • Working Temperature：-10～40ºC

  • Product Dimension：530 x 327 x 72mm

  • Package Dimension：570 x 380 x 100mm

  • Package：1 pc / carton

  • Net Weight：3.2 kg

  • Gross Weight：4.7 kg

  • Product Dimension：530 x 327 x 72mm

  • Package Dimension：570 x 380 x 100mm

  • Package：1 pc / carton

  • Net Weight：3.2 kg

  • Gross Weight：4.7 kg

DIMENSIONS

990521210024 TEKMAND Dimension drawings 2024.10.15_00

GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
Filename
Size
Uploaded
Downloading
Manual
icon
TEKMAND COMMAND WING User Manual
2024-11-14
Drawings
icon
TEKMAND COMMAND WING Dimension Drawing
2024-10-19
Share
facebookXinstagram
PDFpdf-icon

TEKMAND COMMAND WING

OVERVIEW
TECHNICAL SPECIFICATION
GOBOS & COLORS
OPTIONAL ACCESSORIES
VIDEO
DOWNLOADS
RELATED PRODUCTS

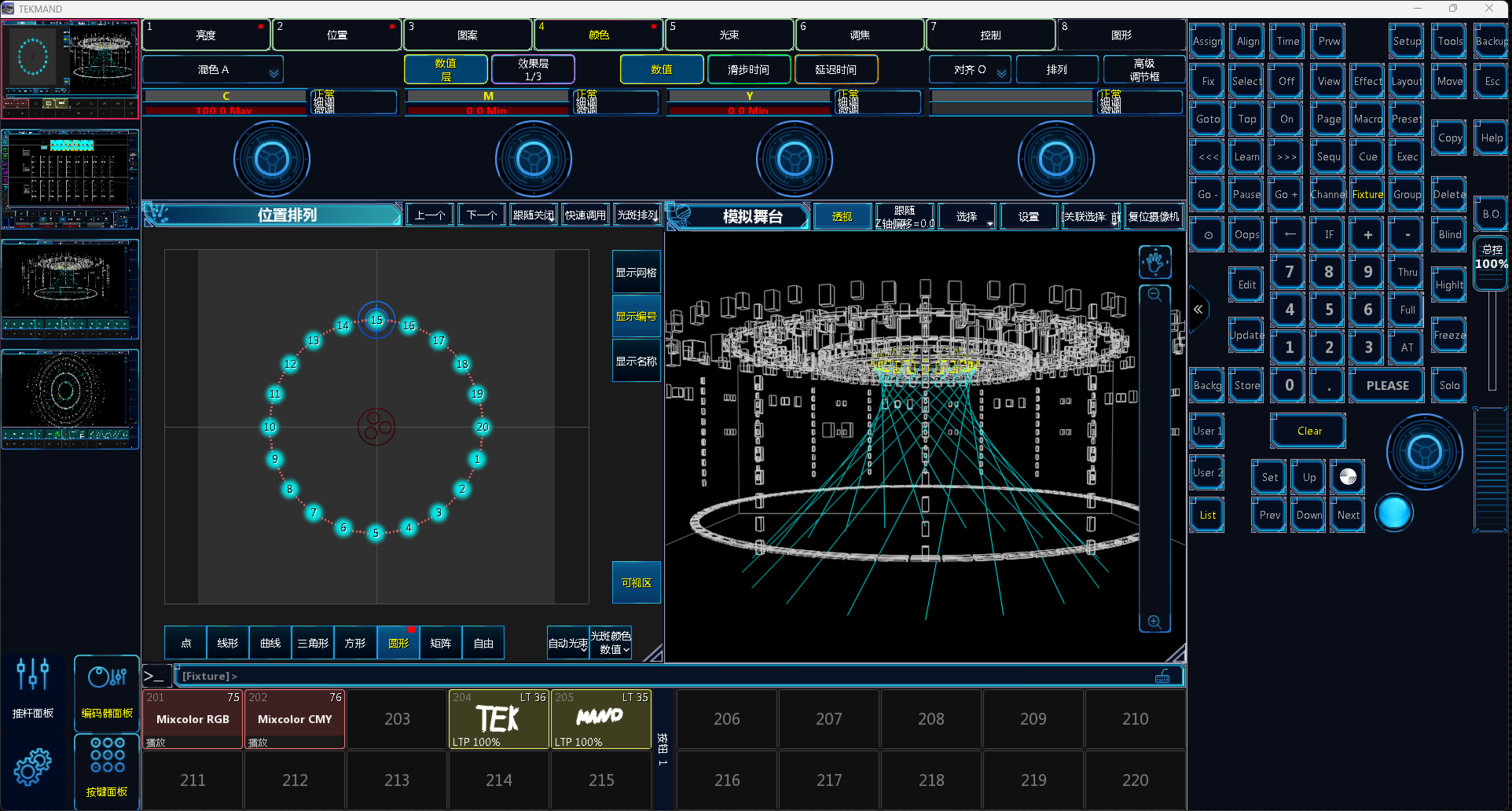

TEKMAND OnPC
TEKMAND COMMAND WING

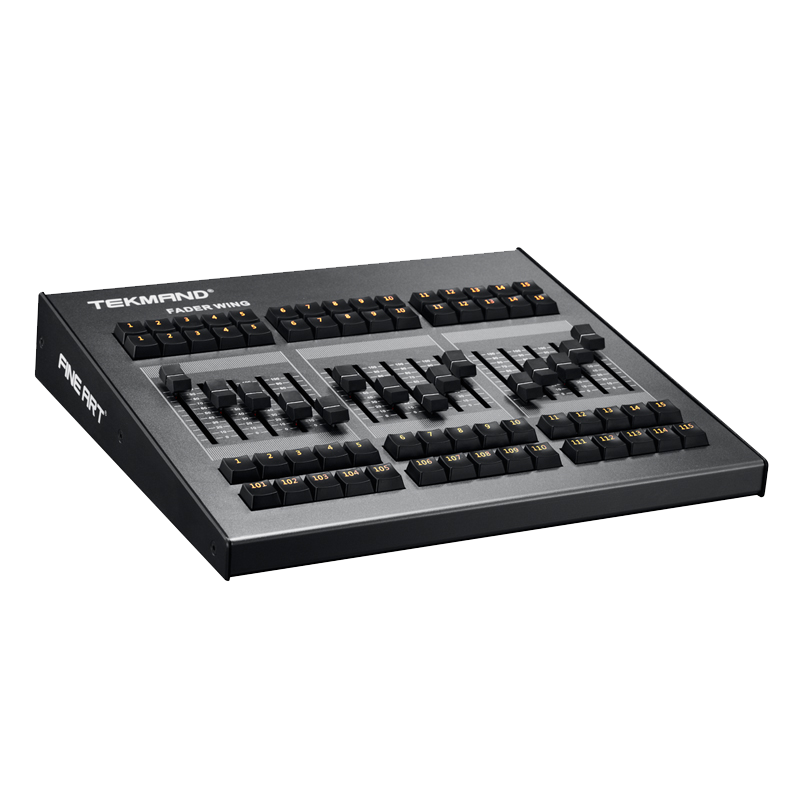

TEKMAND FADER WING
