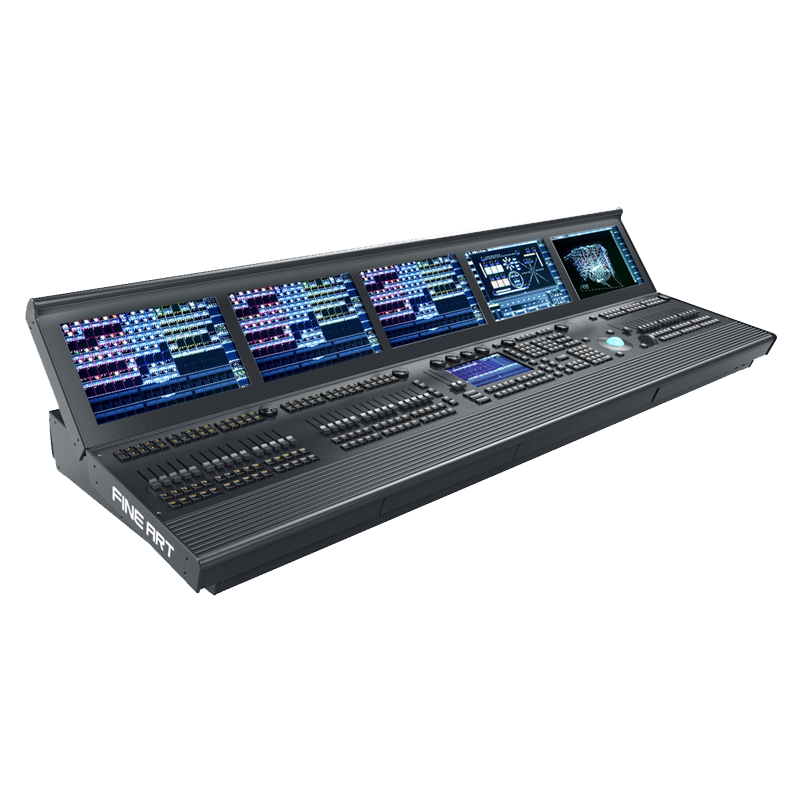

TEKMAND Ⅴ

OVERVIEW

TEKMAND V is the lighting console with strong functions designed and developed independently by FINE ART. It is equipped with high-end hardware, integrating several technologies including hardware, software and network, etc with bidirectional combination of touch screen control interface and the function keys, to achieve a variety of complex real-time control in simple operation, more intuitive and fast. It controls the programming, entry, and the final replay of the whole lighting effects. Simple lighting effect diagram can be seen through the built-in analog stage module, and it supports offline pre programming, which saves a lot of time and improves the efficiency. The console itself can process 12288 parameters, and control various types of lighting equipment including the traditional lights, moving head lights, LED lights, video and digital media lights etc via the external expander. The technology, which leads a tread in domestic market, is equivalent to the level as the similar product of famous international brand. It can be used freely for all kinds of large-scale performances and activities.

TECHNICAL SPECIFICATION

Support multi-language operation (Simplified & Traditional Chinese, English, Japanese, Korean and French)
Support many kinds of input methods (Chinese, English and Korean)
Support multi-machines backup
Support LTP and HTP, method available for fast switch of LTP and HTP
CITP protocol allows a direct preview of videos from media server
Support MIDI / LTC (SMPTE) music time code, convenient for recording and triggering
Handheld equipment remote control is available, support IOS/Android handset system.
Powerful vivid stage 3D simulation effect, timely simulating live effect and convenient for off-line programming
Strong layout management allows diverse operation modes
Support multi-protocols: Art-net, sACN etc
Support multi-user operation and user’s permission setting.
Support RDM remote fixture management
Support 3D off-line programming
Built-in music player, music plays clearly and smoothly

Support multi-language operation (Simplified & Traditional Chinese, English, Japanese, Korean and French)
Support many kinds of input methods (Chinese, English and Korean)
Support multi-machines backup
Support LTP and HTP, method available for fast switch of LTP and HTP
CITP protocol allows a direct preview of videos from media server
Support MIDI / LTC (SMPTE) music time code, convenient for recording and triggering
Handheld equipment remote control is available, support IOS/Android handset system.
Powerful vivid stage 3D simulation effect, timely simulating live effect and convenient for off-line programming
Strong layout management allows diverse operation modes
Support multi-protocols: Art-net, sACN etc
Support multi-user operation and user’s permission setting.
Support RDM remote fixture management
Support 3D off-line programming
Built-in music player, music plays clearly and smoothly

Power Supply: 100-240V~, 2.7A, 50/60 Hz

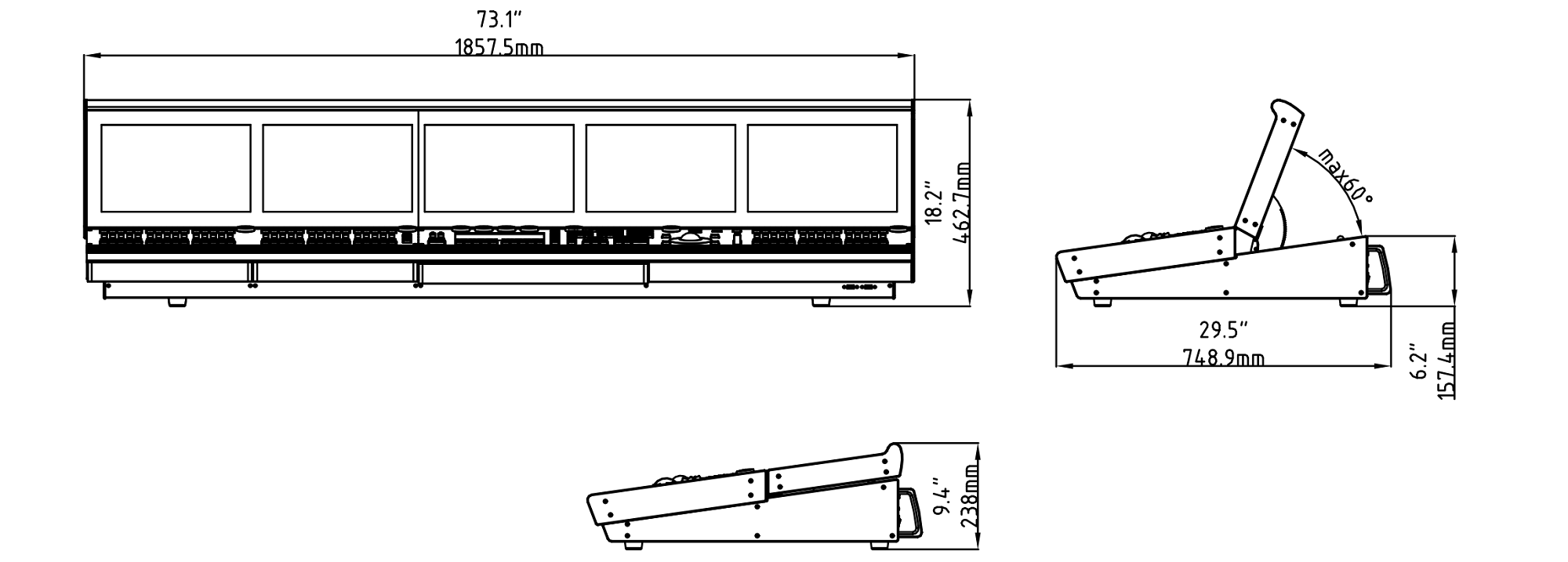

Product Dimension: 1858 x 749 x 238mm/463mm (extended wing)
Package Dimension: 1920 x 825 x 470mm
Package: 1 pc / flight case
Net Weight: 75 kg
Gross Weight: 138 kg
Maximum Power: 270 W
IP Rate: IP 20
Working Temperature:-10~40℃
